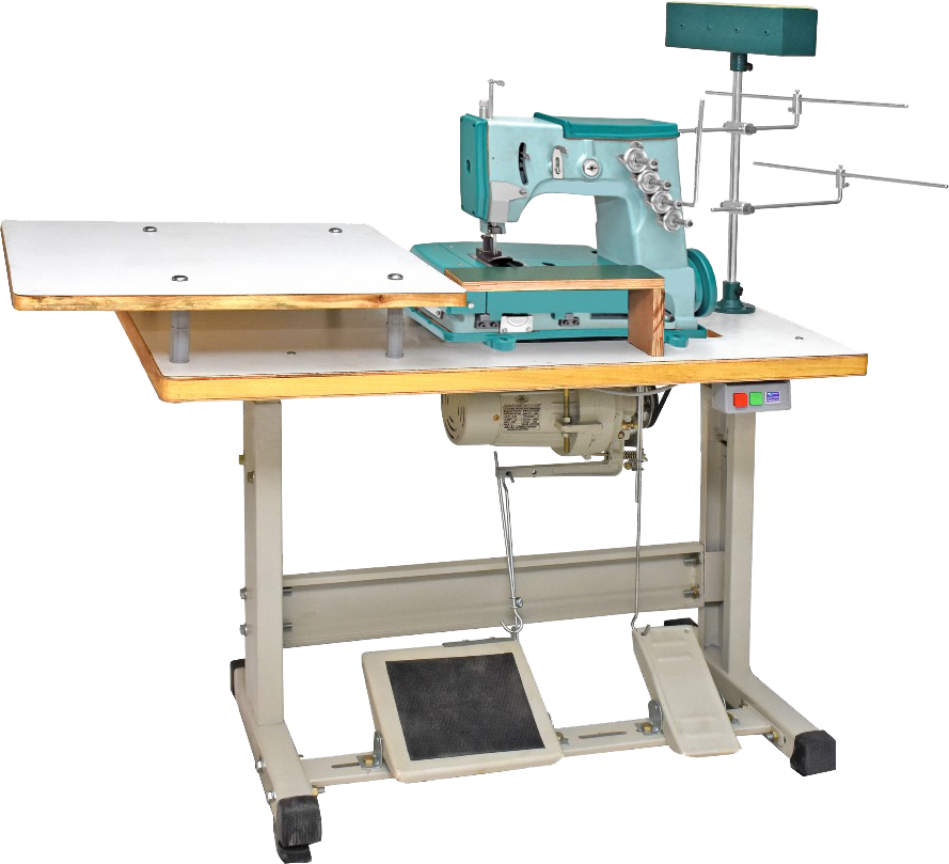

Manual Table Top Stitching Machine 502 HD


DESCRIPTION

Double Needle, Four Thread Chain Stitch Sewing Machine. (2800 RPM)

APPLICATION

For Seaming & Hemming of light to heavy weight fabric such as PP/HDPE Woven cloth, Most suitable for making builder Bags .

TECHNICAL SPECIFICATIONS

Model Max Speed (RPM) Approx Working Speed (RPM) Stitch Range (100 mm) Thickness Sewing Capacity (mm) No. of Needle Needle Size/ Style No. of Thread Thread Type Net Weight Head Lubrication Motor
ST-502 HD 3000 2800 (depends on sewing materials) 11 to 18 Up to 8 mm Two Dnx1# 25-26 Four PP/PE Multiple Filament Fabricated yarns 50 KG. Fully Automatic 1/2 / 1 H.P. 1 OR 3 Phase 1425-2850 RPM
